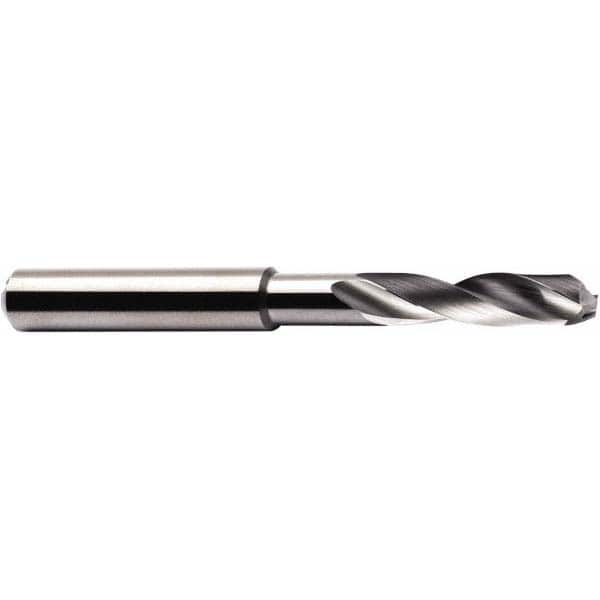

Screw Machine Length Drill Bit: 0.2812″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Series SD203A
Item #: 37801297
Brand: Seco
Model #: 02691568
Product Specifications
| Drill Bit Size (Inch) | 9/32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Overall Length (Decimal Inch) | 3.1100 |
| Series | SD203A |
| Maximum Drilling Depth (Decimal Inch) | 0.9800 |
| Shank Length (Decimal Inch) | 1.4170 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 1.6140 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Designation | DIN |
