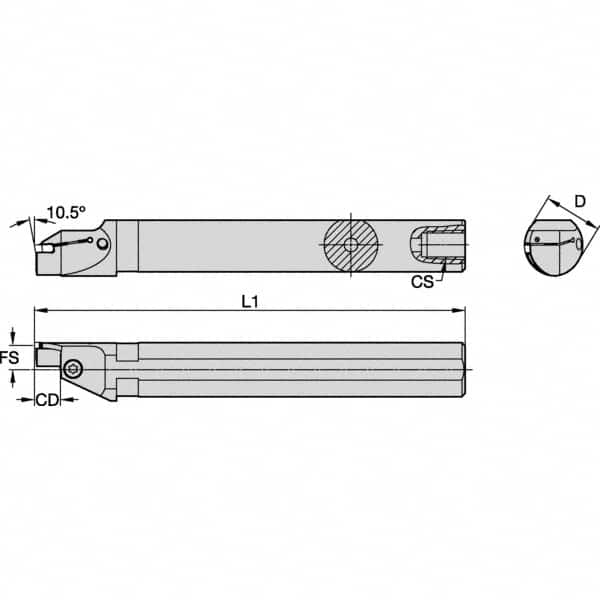

Kennametal - 30mm Min Bore Diam, 200mm OAL, 1" Shank Diam, A-EVS-A Indexable Boring Bar - 12mm Max Bore Depth, EG0300M03P02 Insert
Item #: 37736741
Brand: Kennametal
Model #: 6116540
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVS-A |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 30.00 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 12.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | EG0300M03P02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Rake | Negative |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 35.00 |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Rake Angle | -5 |
| Complete Insert Compatibility | EG0300M03P02 |
| Toolholder Material | Steel |
