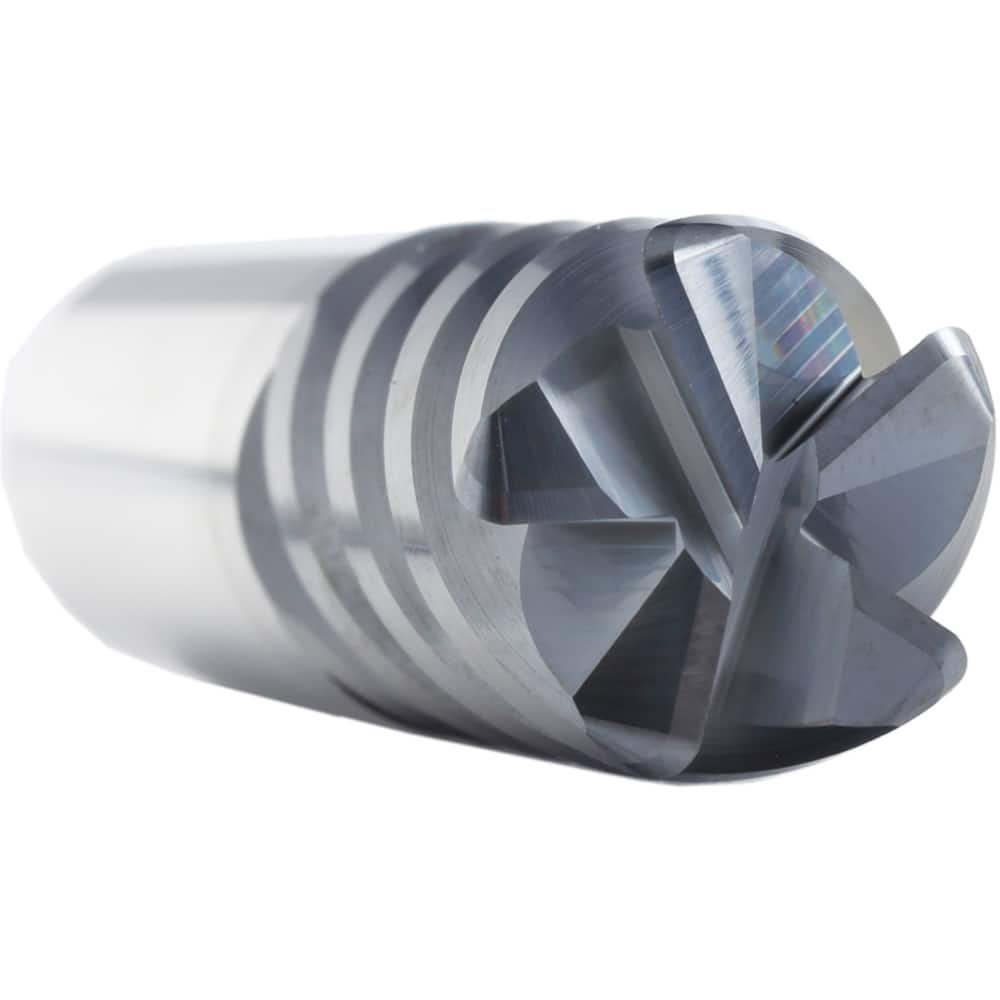

Corner Radius End Mill: 3/4″ Dia, 2-1/4″ LOC, 0.125″ Radius, 5 Flutes, Solid Carbide 5″ OAL, 3/4″ Shank Dia, 45 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SM5F
Item #: 37686680
Brand: Supermill
Model #: SM5F750L-125
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 2-1/4 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM5F |
| Single Or Double End | Single |
| Manufacturers Catalog Number | 15176 |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
