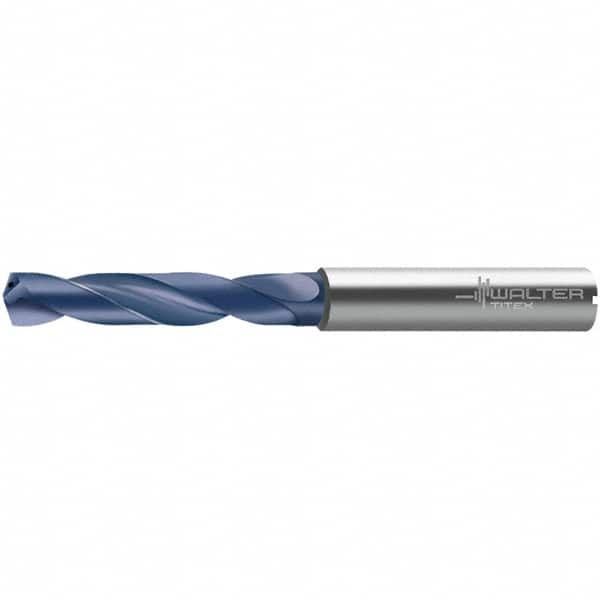

Walter-Titex - 8.1mm 140° Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 47mm Flute Length, 89mm OAL, Through Coolant
Item #: 37404886
Brand: Walter-Titex
Model #: 6968797
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3189 |
| Drill Bit Size (mm) | 8.10 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8500 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5040 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Maximum Drilling Depth (mm) | 35.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.47 |
| Drill Point Length (Decimal Inch) | 0.0580 |
| Drill Tip Finish/Coating | TiNAl |
| Through Coolant | Yes |
| Material Grade | Carbide |
| Series/List | DC150-03-A1 |
