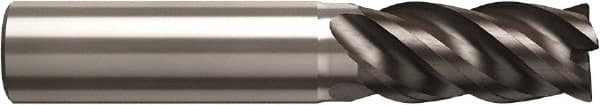

Seco - 20mm, 42mm LOC, 20mm Shank Diam, 100mm OAL, 4 Flute, Solid Carbide Square End Mill - Single End, Super-A Finish, Helical Flute, 40° Helix, Right Hand Cut, Right Hand Flute
Item #: 37392412
Brand: Seco
Model #: 04836
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Super-A is a multi-layer coating featuring AlTiN. It is used on hardened steels, titanium and nickel-chromium-based alloys. Super-A is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 42.00 |
| Length of Cut (Decimal Inch) | 1.6535 |
| Material | Solid Carbide |
| Finish/Coating | Super-A |
| Shank Diameter (mm) | 20.00 |
| Single or Double End | Single |
| Overall Length (mm) | 100.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 40.00 |
| Flute Type | Helical |
| Length Type | Regular |
| Helix Style | Medium |
| Material Grade | Micrograin |
| Extended Reach | No |
