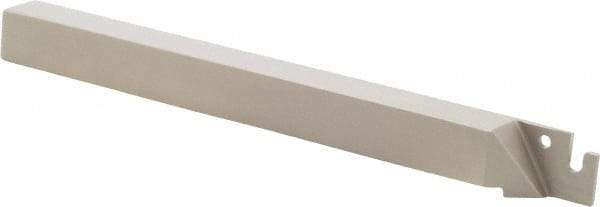

Iscar - External Thread, 0.63" Max Depth of Cut, 0.071" Min Groove Width, 5.91" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1/2" Shank Height x 1/2" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-GripIQ
Item #: 37345683
Brand: Iscar
Model #: 2301901
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.0710 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Overall Length (Decimal Inch) | 5.9100 |
| Series | Tang-GripIQ |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Complete Insert Compatibility | TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-6D; TAG N2.4C; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2UT; TAG R2.4C-8D; TAG R2C-6D; TAG R2J-6D; TAG R2JS-6D |
