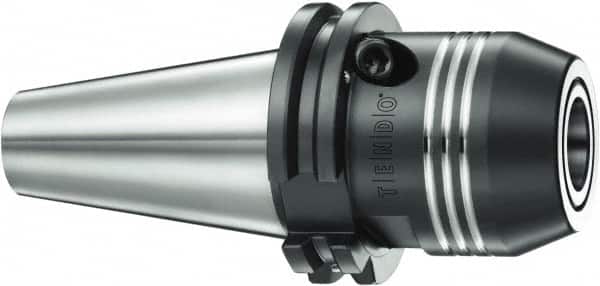

Schunk - BT50 Taper Shank, 32mm Hole Diam, Hydraulic Tool Holder/Chuck - 72mm Nose Diam, 90mm Projection, 50mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 37231925
Brand: Schunk
Model #: 206448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Hole Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 2.8346 |
| Nose Diameter (mm) | 72.00 |
| Projection (Decimal Inch) | 3.5000 |
| Projection (mm) | 90.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 50.00 |
| Balanced to (RPM) | 15000 |
| TIR (mm) | 0.003 |
