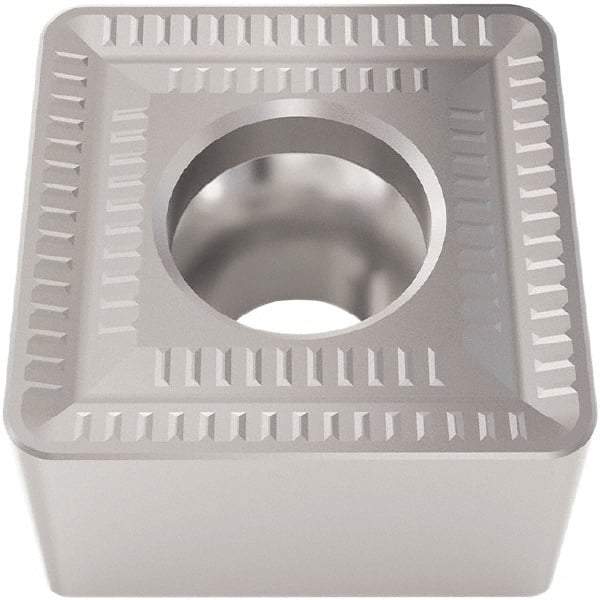

Seco - SCMT866 RR97 Grade TP2501 Carbide Turning Insert - Al2O3 Finish, 90° Square, 1" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 37218997
Brand: Seco
Model #: 20338
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 866 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | TP2501 |
| Coating | Al2O3 |
| Chip Breaker | RR97 |
| Hole Diameter (mm) | 8.70 |
| Hole Diameter (Decimal Inch) | 0.3425 |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Square |
