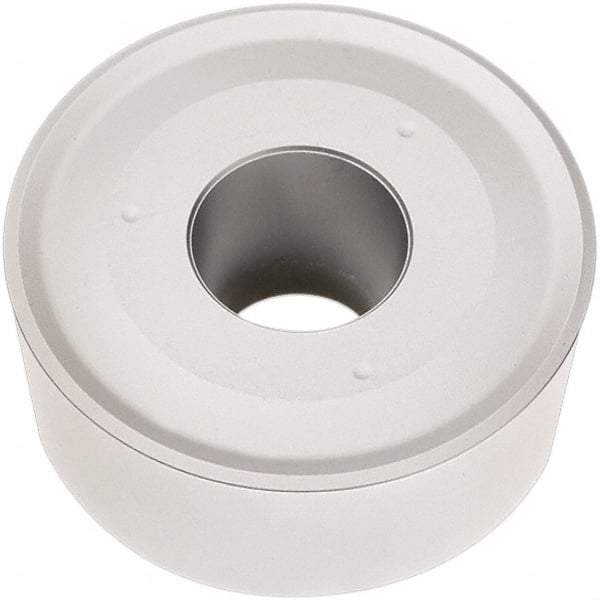

Seco - RCMX320900 RR97 Grade TP0501 Carbide Turning Insert - Al2O3 Finish, Round, 32mm Inscr Circle, 3/8" Thick
Item #: 37201928
Brand: Seco
Model #: 20328
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 320900 |
| Material | Carbide |
| Inscribed Circle (mm) | 32.00 |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | TP0501 |
| Coating | Al2O3 |
| Chip Breaker | RR97 |
| Hole Diameter (mm) | 9.50 |
| Hole Diameter (Decimal Inch) | 0.3740 |
| Rake | Neutral |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | Yes |
| Shape | Round |
