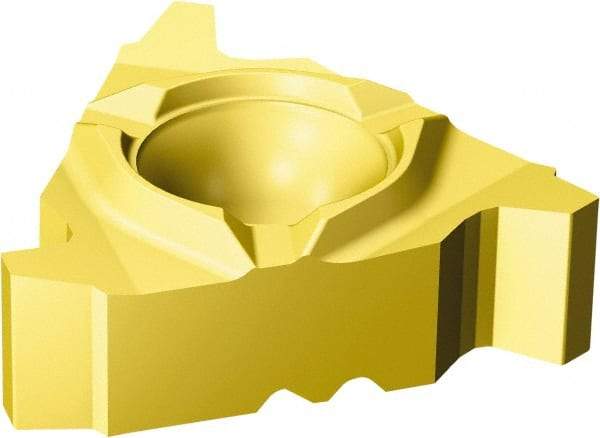

Sandvik Coromant - 266 Internal Right Hand 12 Stub Acme Laydown Threading Insert - Grade 1135, TiCrAlN/TiN Coated Carbide, 9.525mm Inscribed Circle
Item #: 37188117
Brand: Sandvik Coromant
Model #: 5857609
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications | |
---|---|
Material | Carbide |
Insert Style | 266 |
Insert Hand | Right Hand |
Thread Type | Internal |
Thread Standard | Stub Acme |
Manufacturer's Grade | 1135 |
Threads Per Inch | 12 |
Inscribed Circle (mm) | 9.53 |
Inscribed Circle (Inch) | 3/8 |
Inscribed Circle (Decimal Inch) | 0.3750 |
Thickness (Inch) | 5/32 |
Thickness (Decimal Inch) | 0.1563 |
Thickness (mm) | 3.97 |
Included Angle of Threading Tip | 60 |
Hole Diameter (mm) | 4.40 |
Hole Diameter (Decimal Inch) | 0.1732 |
Coating | TiCrAlN/TiN |
Coating Process | PVD |
Chipbreaker | F |
Number of Teeth Per Side | 1 |
Series | CoroThread 266 |
Insert Size | 16 |
