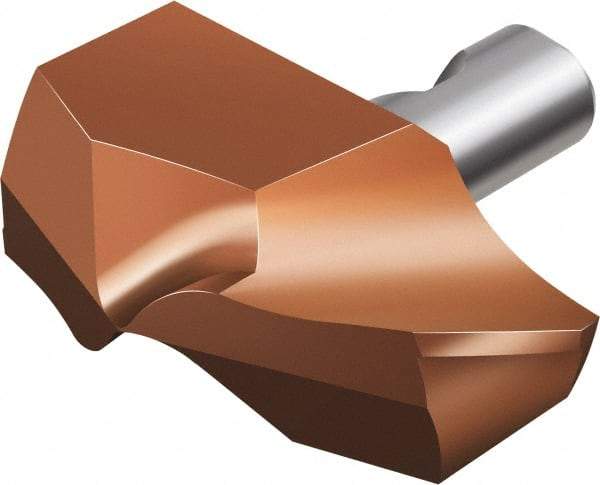

Sandvik Coromant - Series CoroDrill\xAE 870, 12mm Diam Grade 4234 142° Replaceable Drill Tip - Carbide, TiAlN Finish, 10 Seat Size, Through Coolant
Item #: 37043601
Brand: Sandvik Coromant
Model #: 6035632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 12.00 |
| Diameter (Decimal Inch) | 0.4724 |
| Included Angle | 142 |
| Material | Carbide |
| Manufacturer's Grade | 4234 |
| Series | CoroDrill 870 |
| Coating | TiAlN |
| Insert Seat Size | 10 |
| Through Coolant | Through Coolant |
| Coating Process | PVD |
| Height (mm) | 7.50 |
| Height (Decimal Inch) | 0.2953 |
| Width (mm) | 4.66 |
| Insert Geometry | PM |
