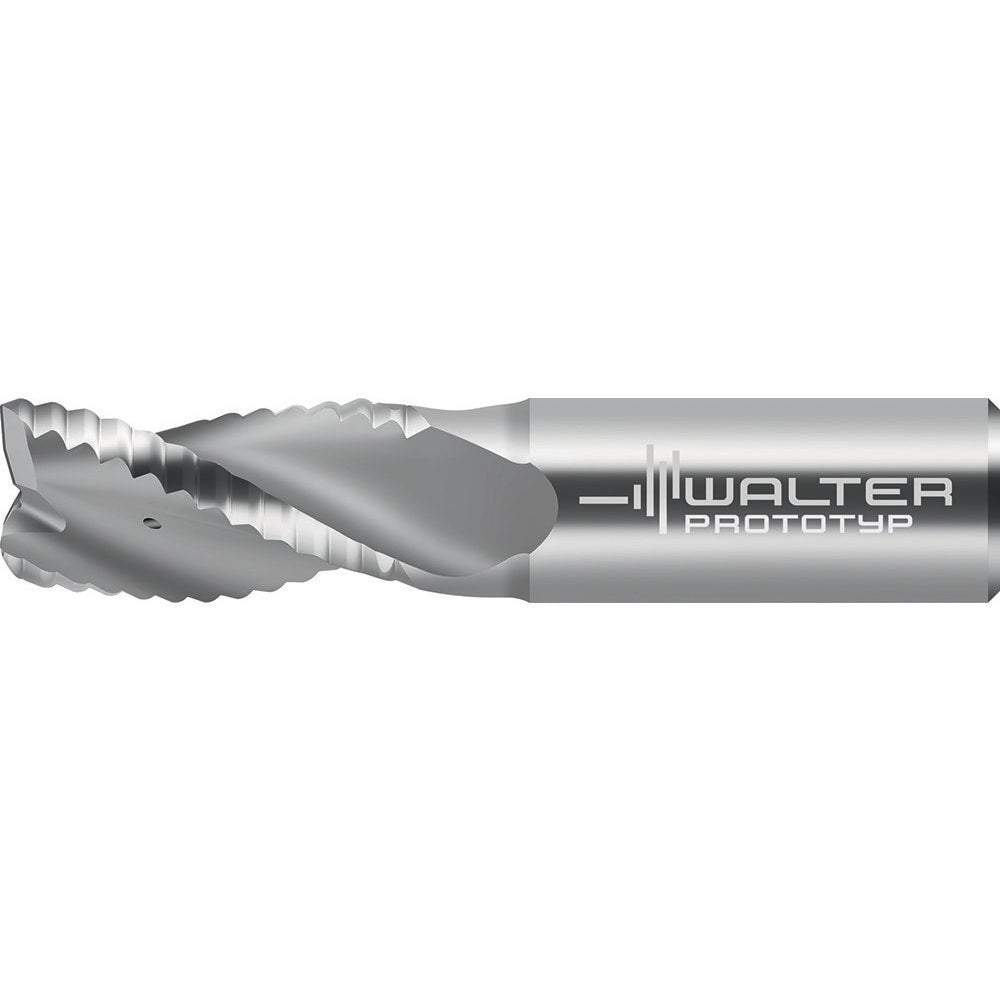

Square End Mill: 20.00 mm Dia, 52.0000 mm LOC, 3 Flute, Solid Carbide
Item #: 53450755
Brand: Walter-Prototyp
Model #: 8200403
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 52.0000 |
| Shank Diameter (mm) | 20.0000 |
| Overall Length (mm) | 104.0000 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Coating/Finish | Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | Yes |
| Flute Type | Spiral |
| Shank Type | Whistle Notch |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Neck Diameter (mm) | 19.000 |
| Reach Length (mm) | 52.00 |
| Shank Diameter Tolerance | h6 |
| Series | MC268 |
| UNSPSC Code | 27112803 |
