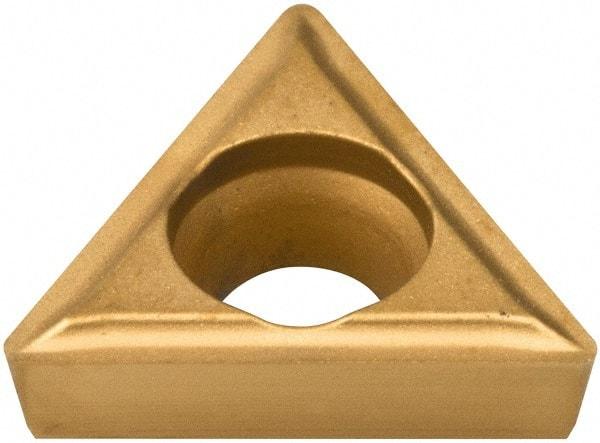

Everede Tool - TPGH215 Grade CVM2 Carbide Turning Insert - TiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 36879484
Brand: Everede Tool
Model #: TPGH-215-CVM2
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGH |
| Insert Size | 215 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CVM2 |
| Coating | TiN |
| Material Grade | C2/C3 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
