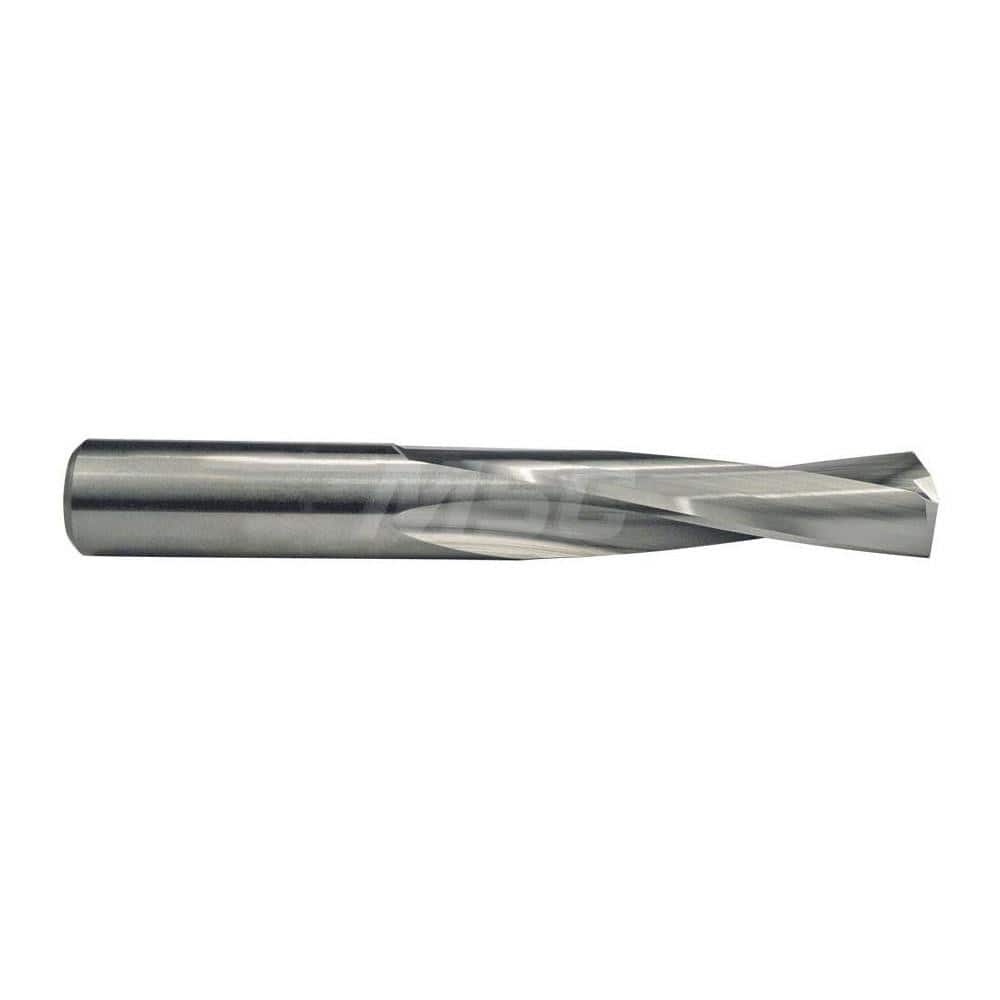

Screw Machine Length Drill Bit: 0.07″ Dia, 135 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 205
Item #: 36835163
Brand: M.A. Ford?
Model #: 20507000A
Product Specifications
| Drill Bit Size (Wire) | #50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 135 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0700 |
| Drill Bit Size (Decimal Inch) | 0.0700 |
| Overall Length (Decimal Inch) | 1.6875 |
| Overall Length (Inch) | 1-11/16 |
| Series | 205 |
| Web Thinning | Web-Thinned |
| Number of Margins | 1 |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 0.6875 |
| Flute Length (Inch) | 11/16 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
