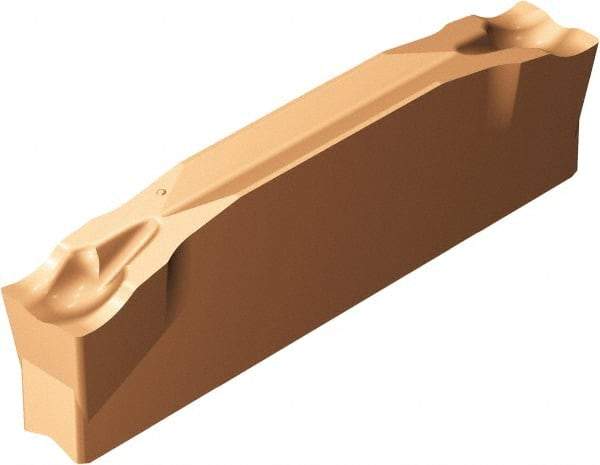

Sandvik Coromant - N123x2J CM 1125 Grade, 0.1969" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0079" Cnr Rad, TiAlN Coated
Item #: 36758399
Brand: Sandvik Coromant
Model #: 5736611
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123x2 |
| Insert Size | J |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CM |
| Maximum Depth of Cut (mm) | 24.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.9488 |
| Full Radius | No |
| Multi-Use Application | Yes |
| Coating Process | PVD |
| Overall Length (mm) | 24.49 |
| Overall Length (Decimal Inch) | 0.9642 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.2 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | J |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1969 |
| Manufacturers Catalog Number | N123J2-0500-0002-CM 1125 |
