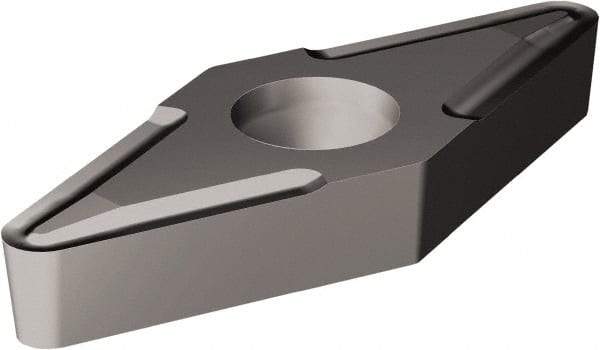

Sandvik Coromant - VBMT21.51 UF Grade H13A Carbide Turning Insert - Uncoated, 35° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 36647204
Brand: Sandvik Coromant
Model #: 5755485
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 10.67 |
| Length (Decimal Inch) | 0.4201 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | UF |
| Insert Length (Decimal Inch) | 0.4201 |
| OverallLength (mm) | 11.07 |
| Overall Length (Decimal Inch) | 0.4359 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VBMT 11 02 04-UF H13A |
| Relief Angle | 5 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
