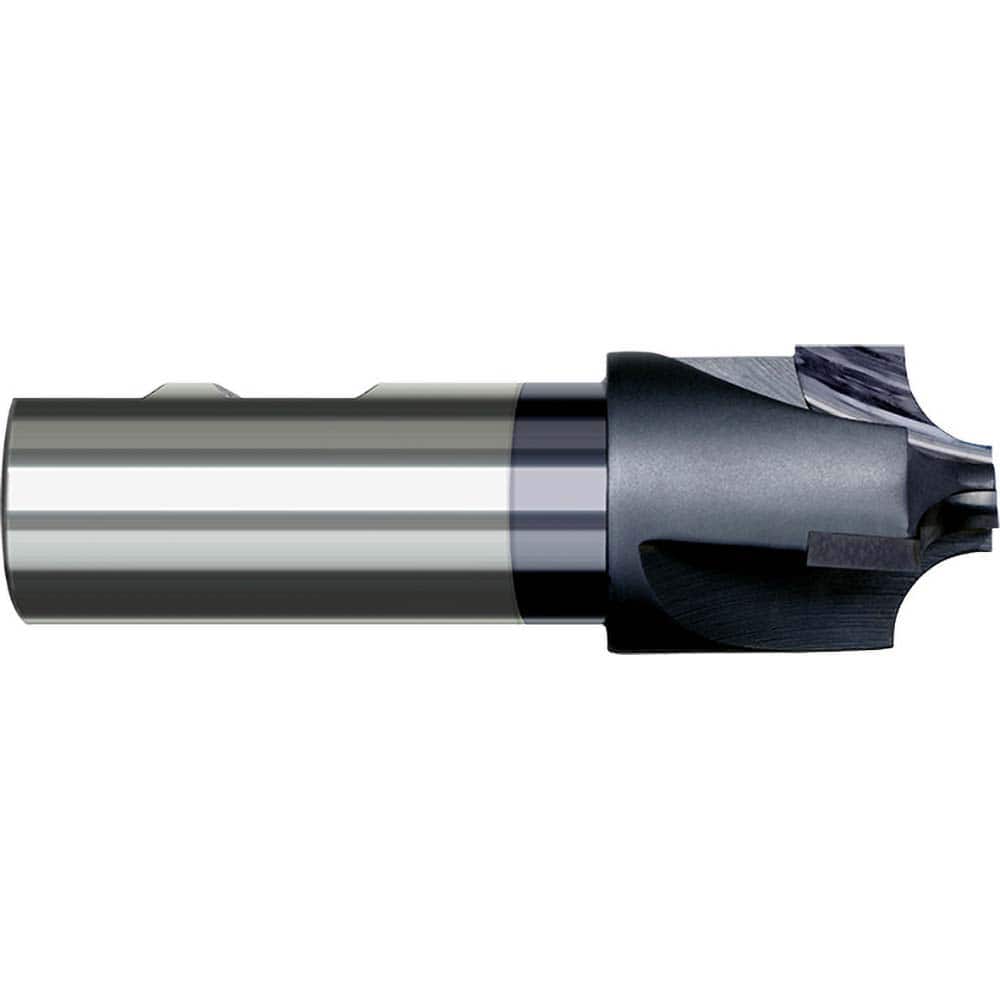

Harvey Tool - Corner Rounding End Mills; Material: Carbide Tipped ; Single or Double End: Single ; Radius (Inch): 3/8 ; Radius (Decimal Inch): 0.3750 ; Mill Diameter (Inch): 1-1/4 ; Mill Diameter (Decimal Inch): 1.2500
Item #: 36459428
Brand: Harvey Tool
Model #: 45024-C3
Product Specifications
Corner Rounding End Mills; Material: Carbide Tipped ; Single or Double End: Single ; Radius (Inch): 3/8 ; Radius (Decimal Inch): 0.3750 ; Mill Diameter (Inch): 1-1/4 ; Mill Diameter (Decimal Inch): 1.2500
| Material | Carbide Tipped |
| Single or Double End | Single |
| Radius (Inch) | 3/8 |
| Radius (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 1-1/4 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Number of Flutes | 3 |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 7/8 |
| Tip Diameter (Inch) | 13/32 |
| Tip Diameter (Decimal Inch) | 0.4060 |
| Overall Length (Inch) | 3-3/4 |
| Series/List | Corner Rounding End Mills - 3 Flute - Flared - Carbide Tipped |
