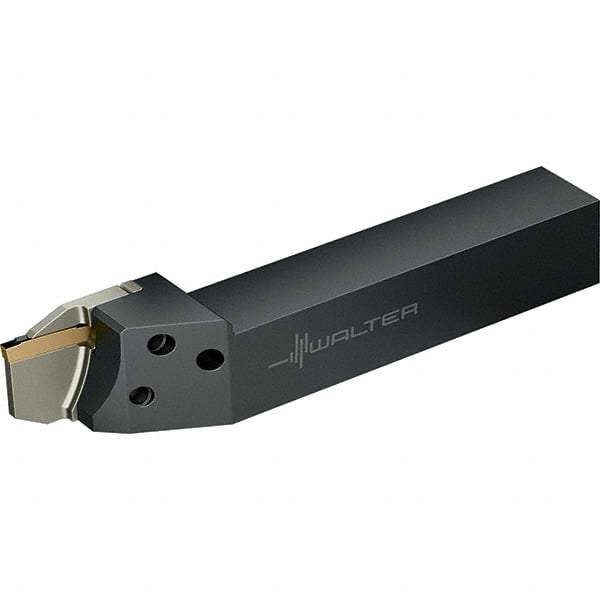

Walter - External Thread, 0.8268" Max Depth of Cut, 182mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 32mm Shank Height x 25mm Shank Width, GX24-4.. Insert Style, NCBE Toolholder Style
Item #: 36376341
Brand: Walter
Model #: 5009204
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (Decimal Inch) | 7.1654 |
| Overall Length (mm) | 182.00 |
| Toolholder Style | NCBE |
| Insert Compatibility | GX24-4.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2717 |
| Head Length (mm) | 54.00 |
| Head Length (Decimal Inch) | 2.1260 |
| Shank Length (Decimal Inch) | 5.0394 |
| Shank Length (mm) | 128.00 |
| Complete Insert Compatibility | GX24-4E600N030-CE4; GX24-4E600N03-CE4; GX24-4E600N050-GD3; GX24-4E600N050-UA4; GX24-4E600N050-UF4; GX24-4E600N05-GD3; GX24-4E600N05-GD6; GX24-4E600N05-UD6; GX24-4E600N05-UF4; GX24-4E600N080-UF4; GX24-4E600N08-UF4; GX24-4E600N300-RD4; GX24-4E600N30-RD4 |
