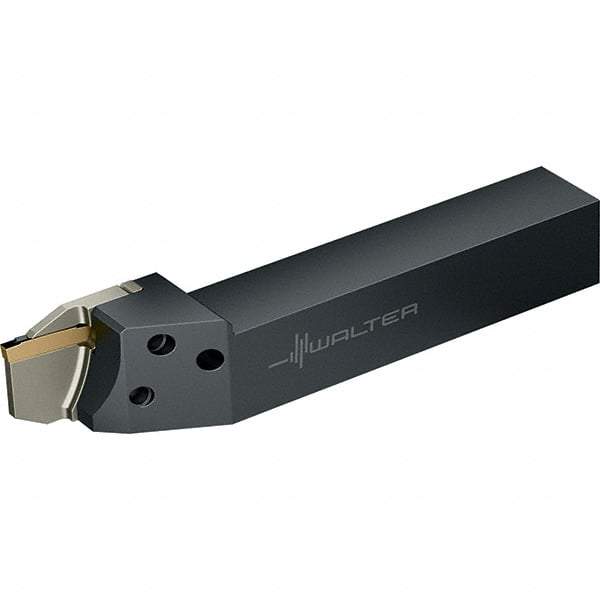

Walter - External Thread, 0.8268" Max Depth of Cut, 132mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, GX24-2.. Insert Style, NCBE Toolholder Style
Item #: 36376275
Brand: Walter
Model #: 5009192
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (Decimal Inch) | 5.1969 |
| Overall Length (mm) | 132.00 |
| Toolholder Style | NCBE |
| Insert Compatibility | GX24-2.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9882 |
| Head Length (mm) | 42.00 |
| Head Length (Decimal Inch) | 1.6535 |
| Shank Length (Decimal Inch) | 3.5433 |
| Shank Length (mm) | 90.00 |
| Complete Insert Compatibility | GX24-2E300N020-CE4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N150-RD4; GX24-2E300N15-RD4 |
