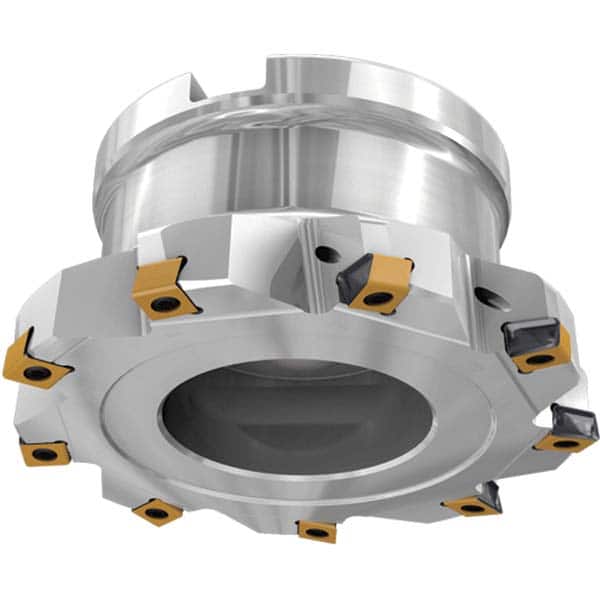

Iscar - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 100.00 Cutting Diameter (Decimal Inch): 3.9370
Item #: 38381943
Brand: Iscar
Model #: 3331878
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 100.00 ; Cutting Diameter (Decimal Inch): 3.9370 ; Arbor Hole Diameter (mm): 32.00 ; Arbor Hole Diameter (Decimal Inch): 1.2590 ; Overall Height (mm): 50.00000 ; Overall Height (Decimal Inch): 1.9680
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2590 |
| Overall Height (mm) | 50.00000 |
| Overall Height (Decimal Inch) | 1.9680 |
| Insert Compatibility | HTP LN |
| Series | HTF |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 0.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 78.000 |
| Hub Diameter (Decimal Inch) | 3.0700 |
