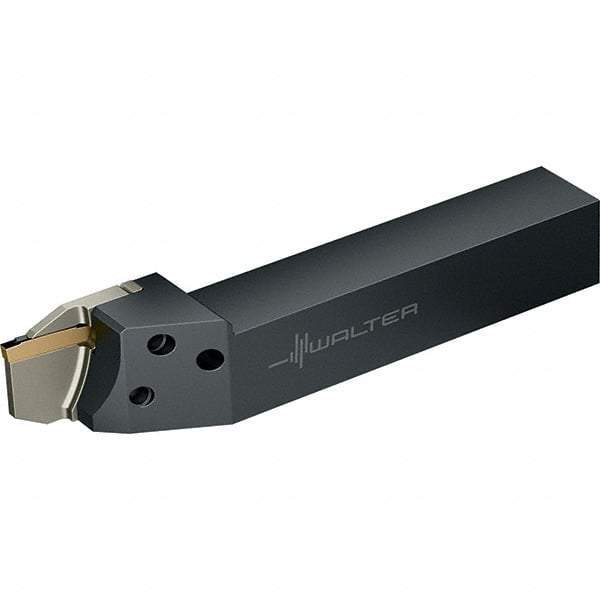

Walter - External Thread, 0.4724" Max Depth of Cut, 4mm Min Groove Width, 153mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, GX16-3.. Insert Style, NCAE Toolholder Style
Item #: 36345809
Brand: Walter
Model #: 5009166
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Decimal Inch) | 6.0236 |
| Overall Length (mm) | 153.00 |
| Toolholder Style | NCAE |
| Insert Compatibility | GX16-3.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2756 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
| Shank Length (Decimal Inch) | 4.5276 |
| Shank Length (mm) | 115.00 |
| Complete Insert Compatibility | GX16-3E400N040-GD3; GX16-3E400N040-UA4; GX16-3E400N040-UF4; GX16-3E400N04-GD3; GX16-3E400N04-GD6; GX16-3E400N04-UD6; GX16-3E400N04-UF4; GX16-3E500N040-GD3; GX16-3E500N040-UA4; GX16-3E500N040-UF4; GX16-3E500N04-GD3; GX16-3E500N04-GD6; GX16-3E500N04-UD6 |
