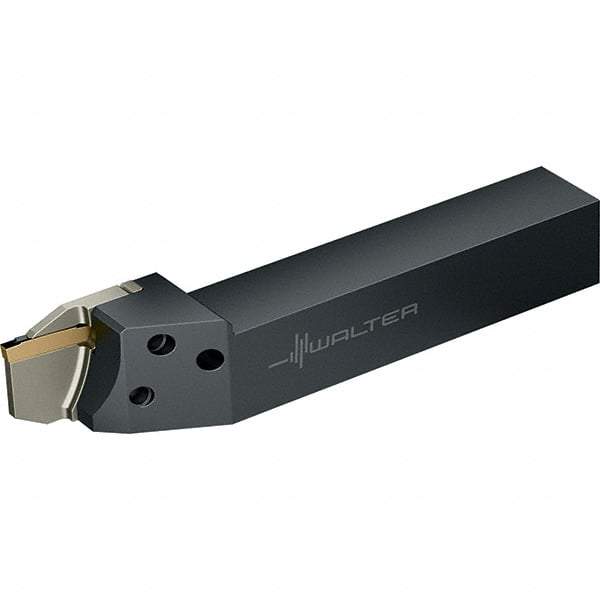

Walter - External Thread, 0.8268" Max Depth of Cut, 4mm Min Groove Width, 182mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 32mm Shank Height x 25mm Shank Width, GX24-3.. Insert Style, NCBE Toolholder Style
Item #: 36345684
Brand: Walter
Model #: 5009202
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Decimal Inch) | 7.1654 |
| Overall Length (mm) | 182.00 |
| Toolholder Style | NCBE |
| Insert Compatibility | GX24-3.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2756 |
| Head Length (mm) | 54.00 |
| Head Length (Decimal Inch) | 2.1260 |
| Shank Length (Decimal Inch) | 5.0394 |
| Shank Length (mm) | 128.00 |
| Complete Insert Compatibility | GX24-3E400N02-CF5; GX24-3E400N030-CE4; GX24-3E400N03-CE4; GX24-3E400N040-GD3; GX24-3E400N040-UA4; GX24-3E400N040-UF4; GX24-3E400N04-GD3; GX24-3E400N04-GD6; GX24-3E400N04-UD6; GX24-3E400N04-UF4; GX24-3E400N080-UF4; GX24-3E400N08-UF4; GX24-3E400N200-RD4 |
