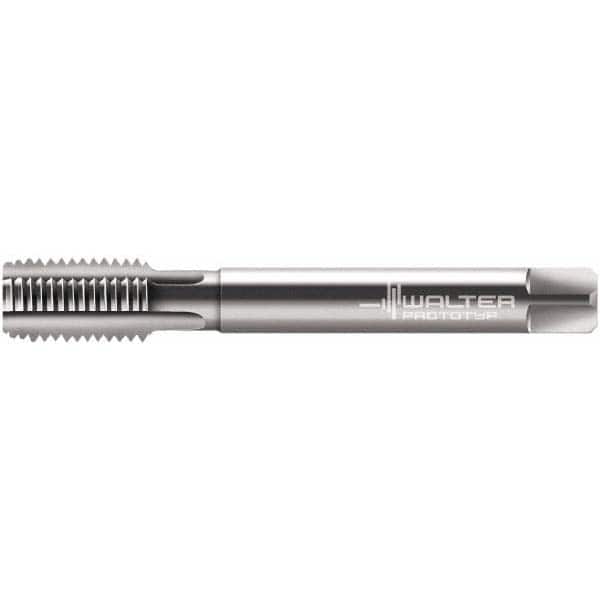

Walter-Prototyp - M3x0.50 Modified Bottoming RH 6H Bright Cobalt 3-Flute Straight Flute Machine Tap
Item #: 36340131
Brand: Walter-Prototyp
Model #: 5076326
Product Specifications
| Tap Type | Machine Tap |
| Thread Size (mm) | M3x0.50 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric |
| Overall Length (Decimal Inch) | 2.20470 |
| Overall Length (mm) | 56.00 |
| Oversize | No |
| Material Grade | M35 |
| Series/List | 20361 |
| Thread Length (Decimal Inch) | 0.3543 |
| Thread Length (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.0866 |
| Shank Diameter (mm) | 2.20 |
| Square Size (Decimal Inch) | 0.0709 |
| Square Size (mm) | 1.80 |
| Material Application | Aluminum; Fiber Reinforced Plastics; Graphite; Grey Cast Iron; Malleable Cast Iron; Non-Ferrous Metals; Plastics; Spheroidal Cast Iron; Vermicular Cast Iron |
