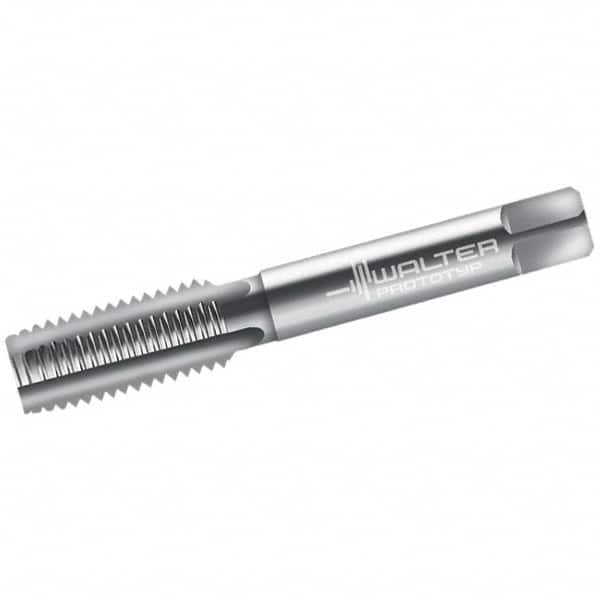

Walter-Prototyp - M2.5x0.45 Metric 6H 3 Flute Bright Finish Cobalt Straight Flute Machine Tap - Bottoming, Right Hand Thread, 40mm OAL, 9mm Thread Length, Oversize
Item #: 36338259
Brand: Walter-Prototyp
Model #: 5075785
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M2.5x0.45 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric |
| Overall Length (Decimal Inch) | 1.57480 |
| Overall Length (mm) | 40.00 |
| Oversize | No |
| Material Grade | M35 |
| Series/List | 20165 |
| Thread Length (Decimal Inch) | 0.3543 |
| Thread Length (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.1102 |
| Shank Diameter (mm) | 2.80 |
| Square Size (Decimal Inch) | 0.0827 |
| Square Size (mm) | 2.10 |
| Material Application | Aluminum; Fiber Reinforced Plastics; Graphite; Non-Ferrous Metals; Plastics |
