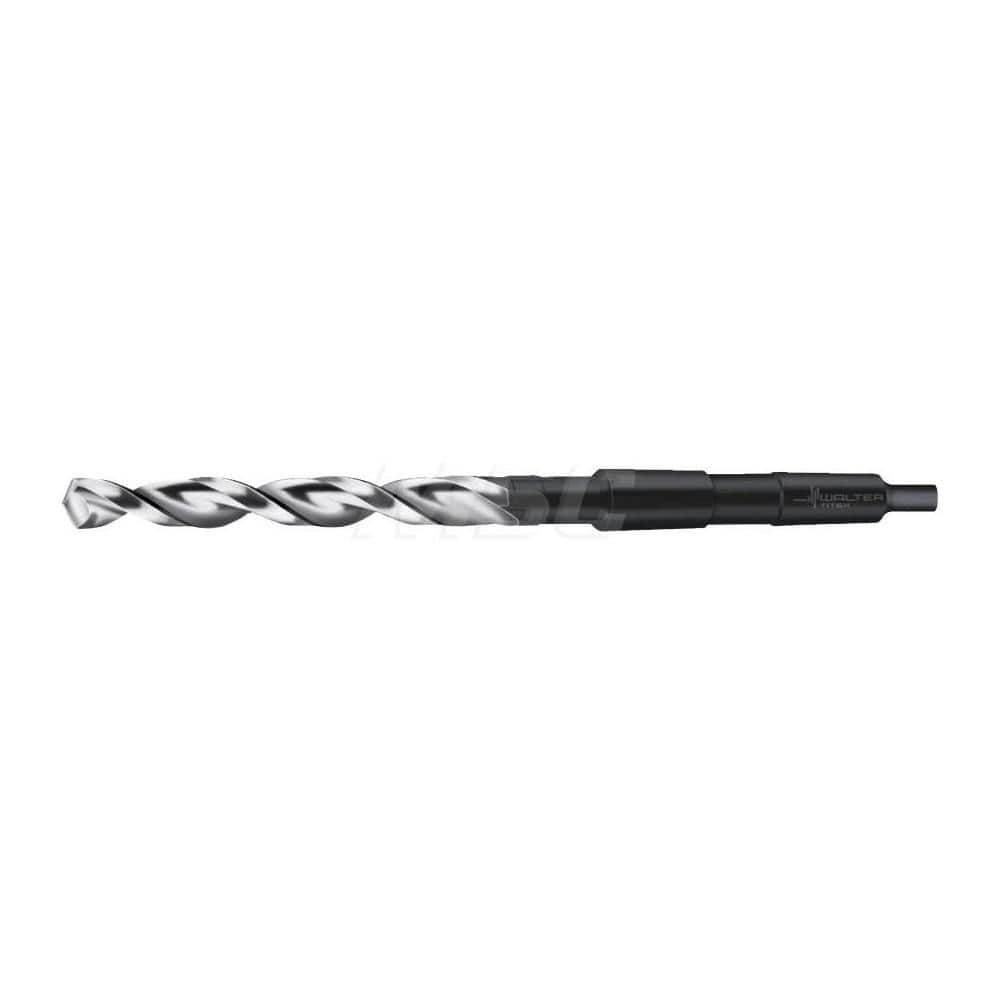

Taper Shank Drill Bit: 0.4252″ Dia, 1MT, 130 °, High Speed Steel Bright/Uncoated & Oxide, 3.7008″ Flute Length, 6.8898″ OAL, Alpha XE Point, Parabolic Flute
Item #: 36337632
Brand: Walter-Titex
Model #: 5065898
Product Specifications
| Drill Bit Size (mm) | 10.80 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (mm) | 175.00 |
| Coating/Finish | Oxide; Bright/Uncoated |
| Flute Type | Parabolic |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Point Type | Alpha XE |
| Flute Length (mm) | 94.00 |
| Drill Bit Size (Decimal Inch) | 0.4252 |
| Flute Length (Decimal Inch) | 3.7008 |
| Maximum Drilling Depth (Decimal Inch) | 2.9900 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 6.8898 |
| Series | A4247 |
| Standards | DIN 345 |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Flute Length x Diamter Ratio | 8xD |
| Drill Bit Diameter Tolerance | h8 |
