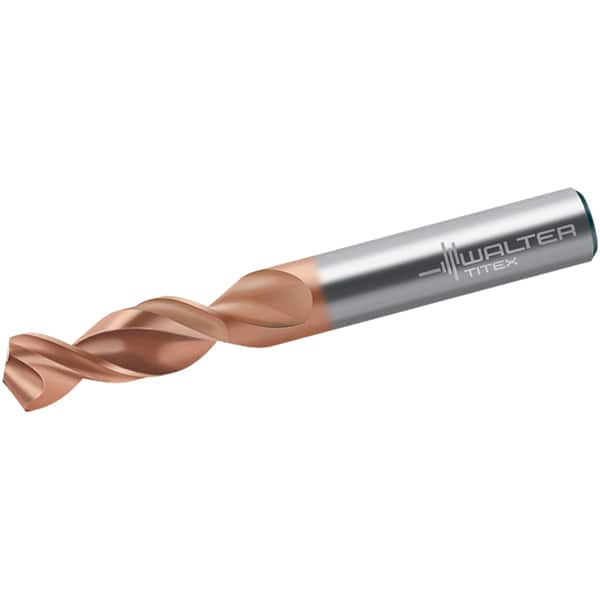

Walter-Titex - 0.238" 130° Parabolic Flute Cobalt Screw Machine Drill Bit - AlCrN Finish, Right Hand Cut, 31mm Flute Length, 70mm OAL, Conical+U Point, Straight Shank
Item #: 36336808
Brand: Walter-Titex
Model #: 5337211
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2380 |
| Drill Bit Size (Letter) | B |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | AlCrN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 31.00 |
| Flute Length (Decimal Inch) | 1.2205 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Conical+U |
| Shank Diameter (mm) | 6.05 |
| Shank Diameter (Decimal Inch) | 0.2382 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 20.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Shank Length (mm) | 39.00 |
| Shank Length (Decimal Inch) | 1.5354 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Material Grade | M35 |
| Series/List | A1149XPL |
| Length Type | Stub |
