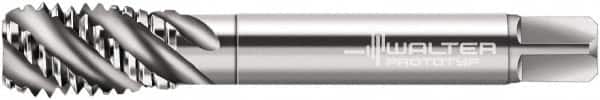

Walter-Prototyp - 3/4-16 UNF 4 Flute 2B Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 4-1/4" OAL, Right Hand Flute, Right Hand Thread, Series A2356760
Item #: 36328359
Brand: Walter-Prototyp
Model #: 5348558
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/4-16 |
| Chamfer | Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 4 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (mm) | 107.95 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Material Grade | M35 |
| Oversize | No |
| Thread Length (Decimal Inch) | 1.1810 |
| Thread Length (mm) | 30.00 |
| Flute Type | Fast Spiral |
| Series/List | A2356760 |
| Neck Length (Decimal Inch) | 0.4331 |
| Tapping Depth (Decimal Inch) | 1.6142 |
| Tapping Depth (mm) | 41.00 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Shank Diameter (mm) | 14.99 |
| Square Length (Inch) | 11/16 |
| Material Application | Aluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metals; Spheroidal Cast Iron; Steel; Vermicular Cast Iron |
