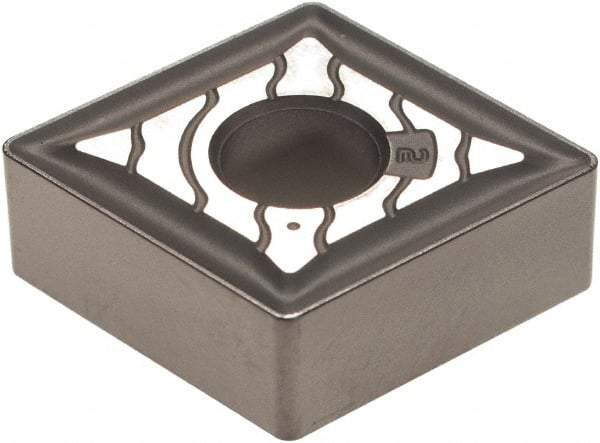

Walter - CNMG542 MK5 Grade WKK10S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 36326833
Brand: Walter
Model #: 6353366
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 542 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WKK10S |
| Coating | TiCN/Al2O3/TiCN |
| Material Grade | K10/H30 |
| Chip Breaker | MK5 |
| ISO Number | CNMG160608-MK5 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG160608-MK5 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | H |
| Included Angle | 80 |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
