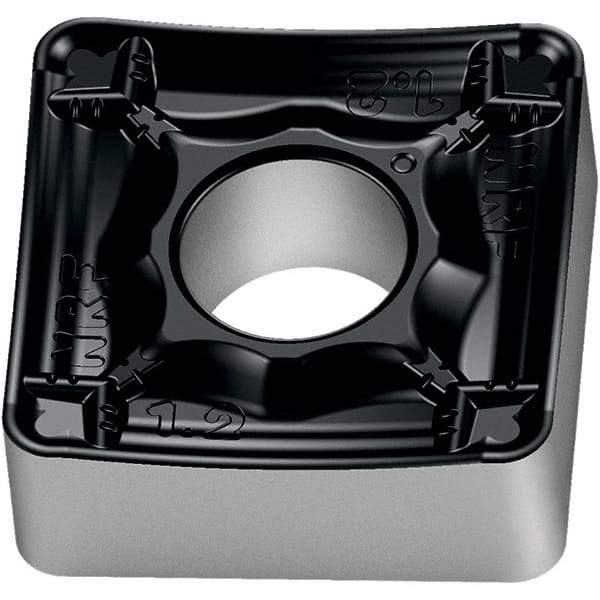

Walter - SNMM866 NRF Grade WPP20S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 1" Inscr Circle, 3/8" Thick, 1/16" Corner Radius
Item #: 36323046
Brand: Walter
Model #: 6163815
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 866 |
| Material | Carbide |
| Length (mm) | 25.40 |
| Length (Decimal Inch) | 1.0000 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | WPP20S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P20/K30 |
| Chip Breaker | NRF |
| ISO Number | SNMM250916-NRF |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMM866-NRF |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 90 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 11.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Square |
