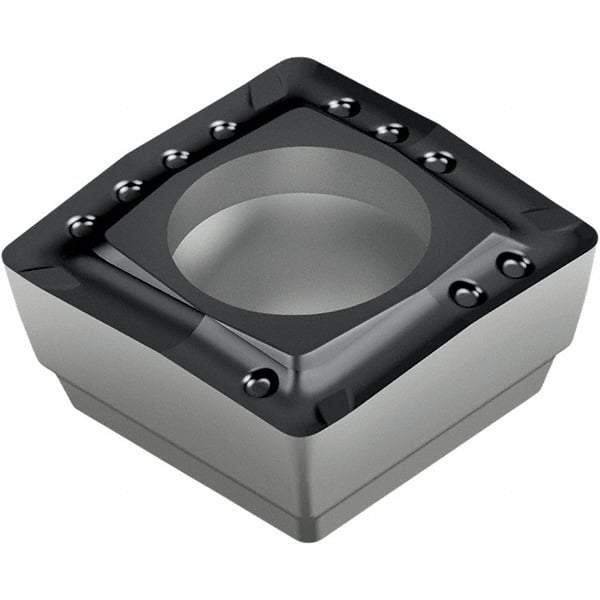

Walter - P4843 E57 Grade WKP25S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 6.5mm Inscribed Circle
Item #: 36289726
Brand: Walter
Model #: 6171454
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 3 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25S |
| Inscribed Circle (mm) | 6.50 |
| Inscribed Circle (Decimal Inch) | 0.2559 |
| Thickness (mm) | 2.80 |
| Thickness (Decimal Inch) | 0.1102 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E57 |
