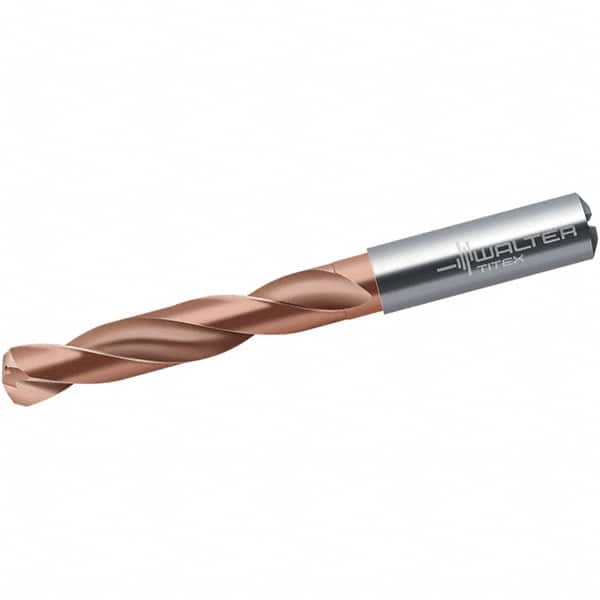

Walter-Titex - 3mm 140° Solid Carbide Jobber Drill - AlCrN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, X-treme CI Point
Item #: 36281061
Brand: Walter-Titex
Model #: 5834198
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace materials, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | X-treme CI |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Maximum Drilling Depth (Decimal Inch) | 0.9055 |
| Maximum Drilling Depth (mm) | 23.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Material Grade | K30F |
| Series/List | A3382XPL |
