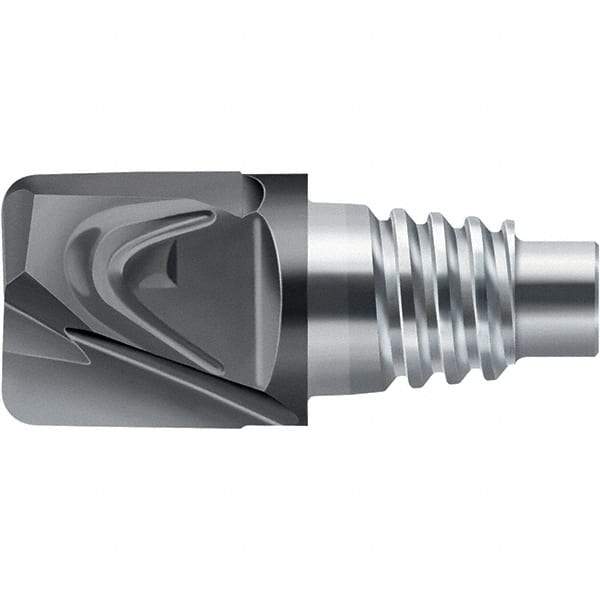

Walter-Prototyp - H1E Carbide End Milling Tip Insert - TiAlN Finish, 2 Flutes, 12mm Cutting Diam, 10mm Depth of Cut, 14mm Extension, 0.0197" Cnr Rad
Item #: 36271179
Brand: Walter-Prototyp
Model #: 6068745
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protostar N 10 |
| Milling Tip Style | H1E |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 10.00 |
| Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating Process | PVD |
| Extension From Holder (mm) | 14.00 |
| Extension From Holder (Decimal Inch) | 0.5512 |
| Style | H1E12018 |
