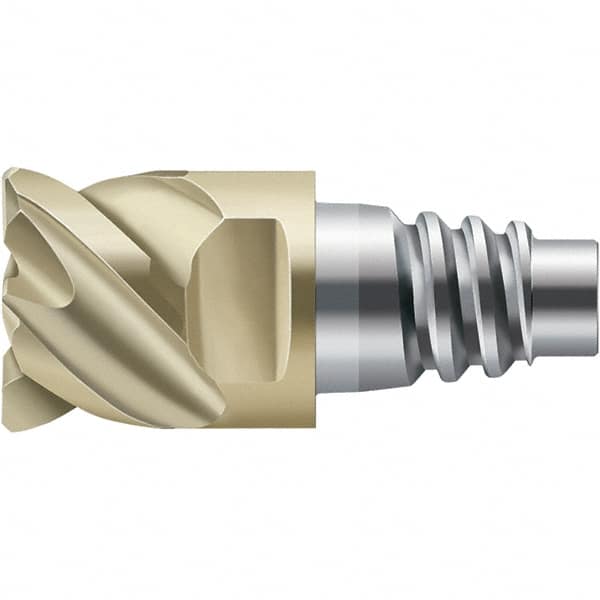

Walter-Prototyp - H4E Carbide End Milling Tip Insert - TiAlN/ZrN Finish, 4 Flutes, 20mm Cutting Diam, 9.85mm Depth of Cut, 21.3mm Extension, 0.1181" Cnr Rad
Item #: 36270924
Brand: Walter-Prototyp
Model #: 6073670
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/ZrN is a high performance multilayer specifically developed for machining steel. It's chemically resistant to emulsions and oils and is extremely effective in preventing built up edges.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protomax ST |
| Milling Tip Style | H4E |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 9.85 |
| Depth of Cut (Decimal Inch) | 0.3878 |
| Number of Flutes | 4 |
| Coating | TiAlN/ZrN |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating Process | PVD |
| Extension From Holder (mm) | 21.30 |
| Extension From Holder (Decimal Inch) | 0.8386 |
| Style | H4E38217 |
