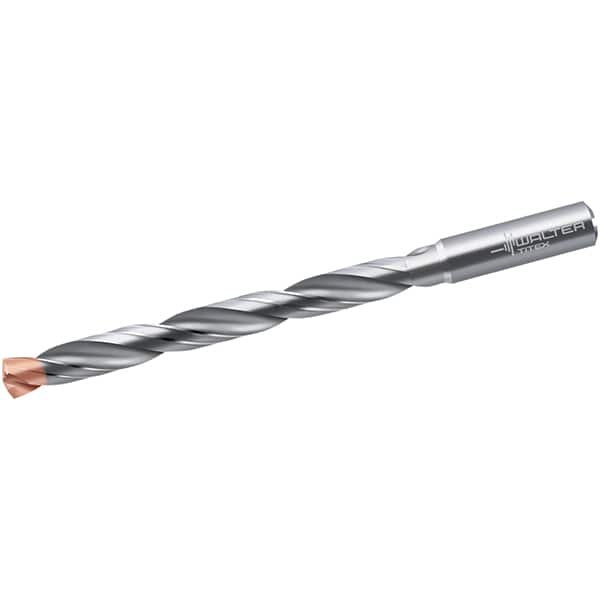

Walter-Titex - 18.5mm 140° Solid Carbide Jobber Drill - Double Coating Finish, Right Hand Cut, Spiral Flute, Straight Shank, 244mm OAL, X-treme D Point
Item #: 36270627
Brand: Walter-Titex
Model #: 5918584
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Double coating high-performance drills are designed for maximum wear resistance. It has been designed to extend tool and increase the cutting speed and feed rate at the same time. Double coating is a proprietary coating exclusive to Walter Titex.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 18.50 |
| Drill Bit Size (Decimal Inch) | 0.7283 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Double Coating |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 190.00 |
| Flute Length (Decimal Inch) | 7.4803 |
| Overall Length (mm) | 244.00 |
| Overall Length (Decimal Inch) | 9.6063 |
| Flute Length x Diameter Ratio | 8xD |
| Point Type | X-treme D |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Maximum Drilling Depth (Decimal Inch) | 6.6929 |
| Maximum Drilling Depth (mm) | 170.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Web Thinning | Web-Thinned |
| Material Grade | K30F |
| Series/List | A6489DPP |
