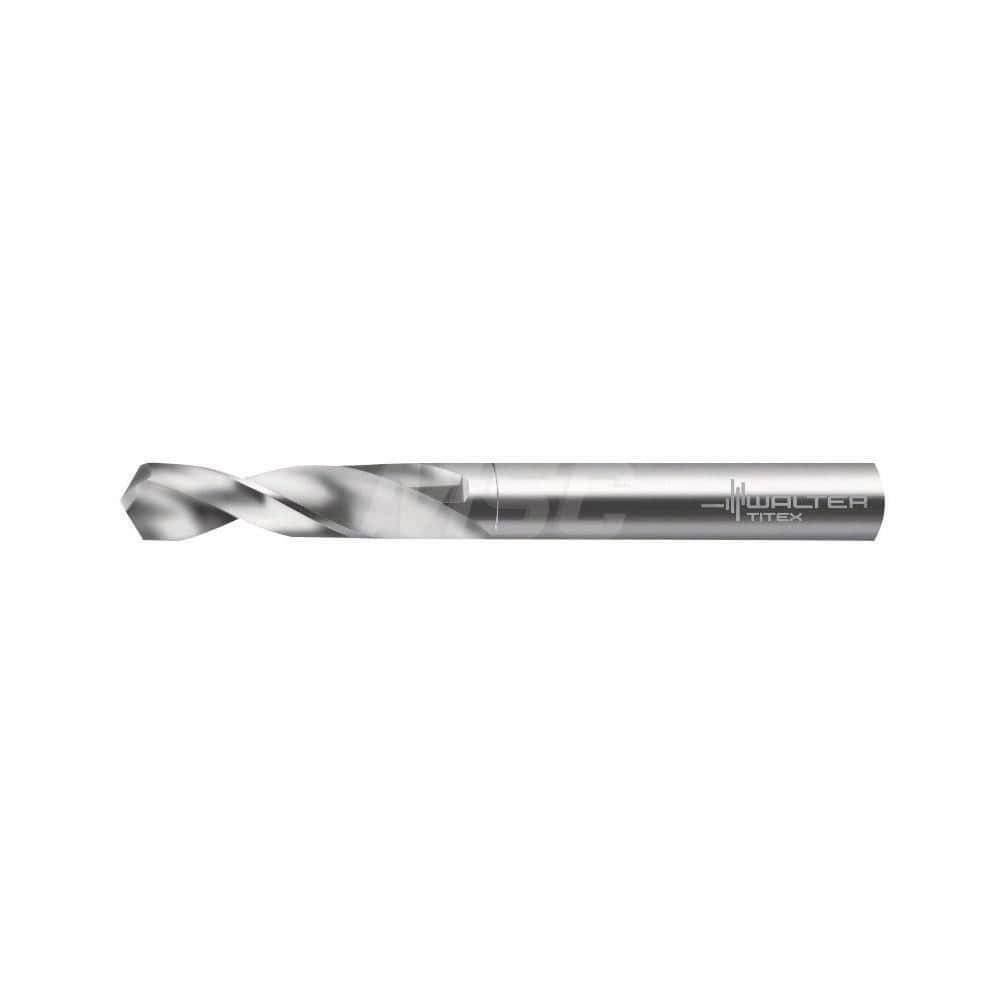

Screw Machine Length Drill Bit: 0.189″ Dia, 118 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A1163
Item #: 36265585
Brand: Walter-Titex
Model #: 5057577
Product Specifications
| Drill Bit Size (mm) | 4.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Form V+A |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1890 |
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Diameter (mm) | 4.80 |
| Series | A1163 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7087 |
| Maximum Drilling Depth (mm) | 18.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.44 |
| Drill Point Length (Decimal Inch) | 0.0568 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | h7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 1.0236 |
| Flute Length (mm) | 26.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 to 5.00 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
| Material Grade | K30F |
 | |
| MSC Part # | 36265585 |
| Mfr Part # | 5057577 |
| Country of OriginCountry of Origin is subject to change | India |
