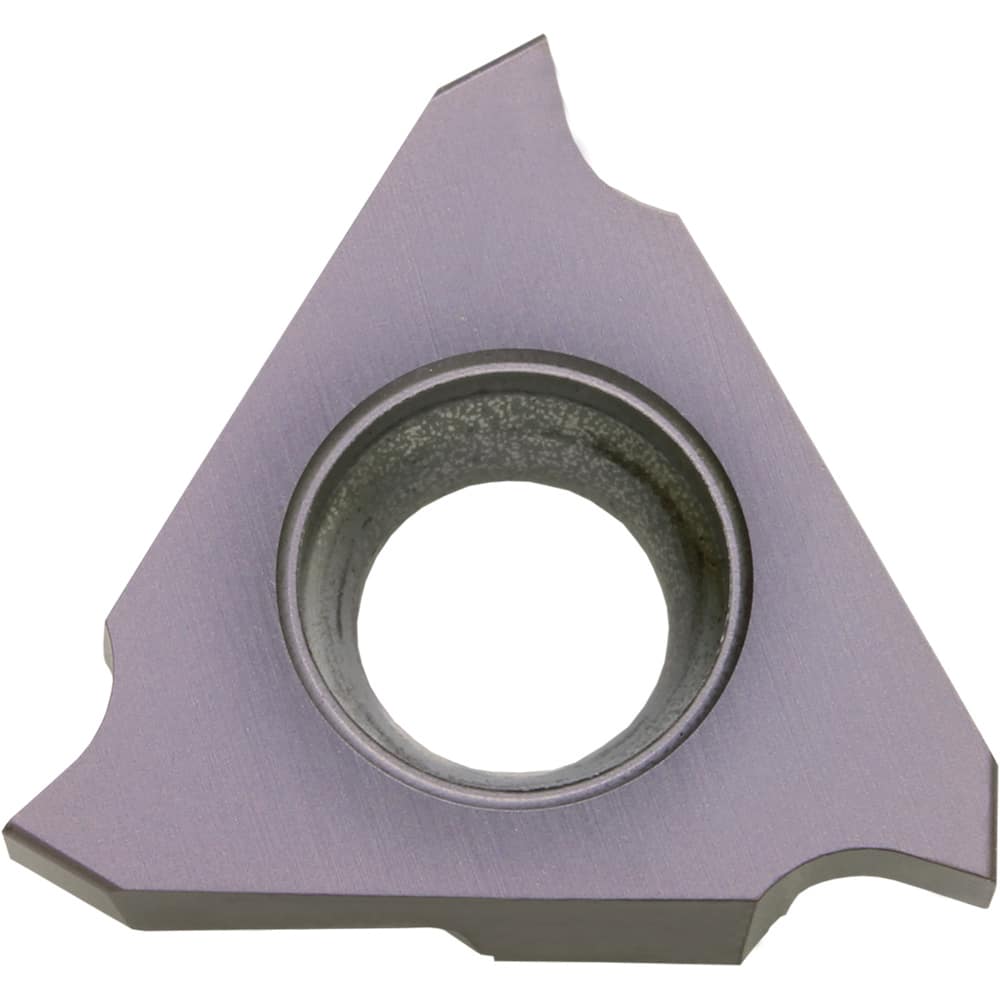

Kyocera - GBA32R120-005 PR1215 Carbide Grooving Insert
Item #: 36206548
Brand: Kyocera
Model #: 8833779
Product Specifications
| Insert Style | GBA |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 1.200 |
| Maximum Depth of Cut (mm) | 2.00 |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 3.18 |
| Number of Cutting Edges | 3 |
| Multi-Use Application | External Grooving |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.05 |
| Coating Process | PVD |
| Series | GBA |
| Rake | Positive |
| ISO Number | GBA32R120-005 |
| Manufacturers Catalog Number | GBA32R120005PR1215 |
| Insert Thickness (mm) | 3.18 |
| Series Number | GBA |
| Insert Holding Method | Screw or Clamp |
| Hole Diameter (mm) | 4.4000 |
| Inscribed Circle (Inch) | 3/8 |
| Hole Diameter (Decimal Inch) | 0.1732 |
