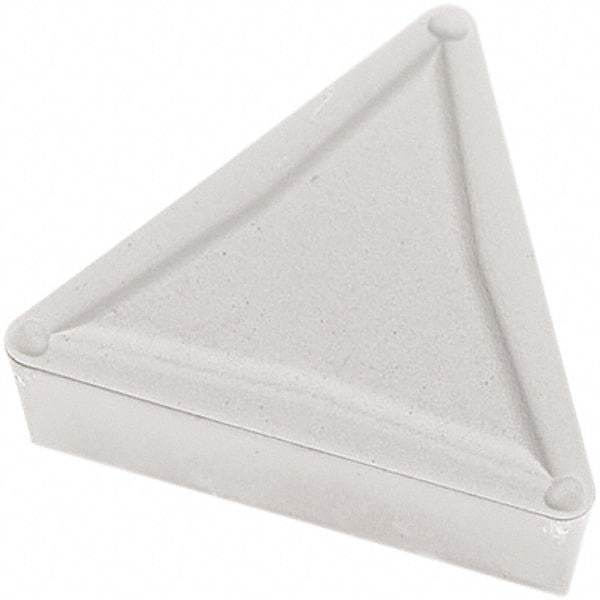

Seco - TPMR321 M3 Grade TP2501 Carbide Turning Insert - Al2O3 Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius - Benchmark Tooling

Seco - TPMR321 M3 Grade TP2501 Carbide Turning Insert - Al2O3 Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius


Item #: 36205169
Brand: Seco
Model #: 17750
Exact Tooling IR#: 04

Features and Benefits

Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Insert Style TPMR
Insert Size 321
Material Carbide
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Thickness (Inch) 1/8
Thickness (Decimal Inch) 0.1250
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0156
Manufacturer's Grade TP2501
Coating Al2O3
Chip Breaker M3
Relief Angle 11
Coating Process Duratomic
Primary Workpiece Material P
Secondary Workpiece Material K
Included Angle 60
Cutting Direction Neutral
Insert Hand Neutral
Insert Holding Method Clamp
Shape Triangle
$16.83
