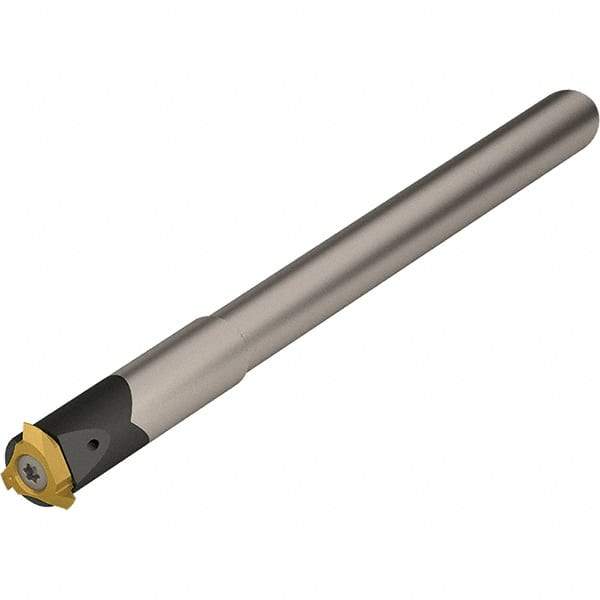

Vargus - TMSD, Internal or External, Right Hand, 65mm Max Depth of Cut, 1.26 to 2.56" Groove Width, Indexable Grooving Tool Holder - 11V Insert Compatibility, 0.591" Shank Height, 15mm Shank Width, 135mm OAL, Through Coolant
Item #: 36190965
Brand: Vargus
Model #: 67144
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 65.00 |
| Minimum Groove Width (Decimal Inch) | 1.2600 |
| Maximum Groove Width (Decimal Inch) | 2.5600 |
| Overall Length (mm) | 135.00 |
| Toolholder Style | TMSD |
| Insert Compatibility | 11V |
| Shank Height (Decimal Inch) | 0.5910 |
| Shank Width/Diameter (mm) | 15.00 |
| Series | CGMC |
| Through Coolant | Coolant Through |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | CGMC 15C22-65-11-3 |
