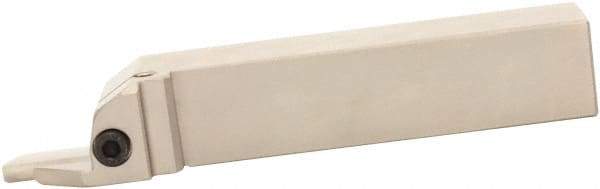

Sumitomo - GNDF, External, Right Hand, 17.78mm Max Depth of Cut, 4mm Min Groove Width, Indexable Grooving Tool Holder - GCMN, GCML, GCMR Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 36173839
Brand: Sumitomo
Model #: U104392
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7000 |
| Maximum Depth of Cut (mm) | 17.78 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GNDF |
| Insert Compatibility | GCMN; GCML; GCMR |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | GND |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Multi-Use Application | Facing |
| Insert Holding Method | Screw |
| Insert Seat Size | 4 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Groove Outside Diameter (mm) | 55.00 |
| Minimum Axial Groove Inside Diameter(mm) | 40.00 |
| Toolholder Material | Steel |
