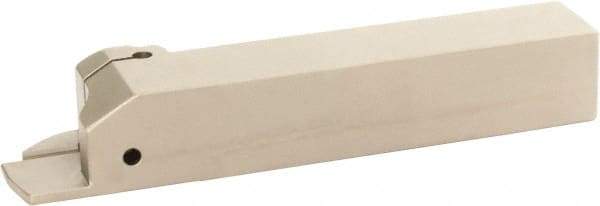

Sumitomo - GNDM, External, Left Hand, 12mm Max Depth of Cut, 3mm Min Groove Width, Indexable Grooving Tool Holder - GCMN, GCML, GCMR Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 120mm OAL
Item #: 36167484
Brand: Sumitomo
Model #: 2600AUR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | GNDM |
| Insert Compatibility | GCMN; GCML; GCMR |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | GND |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning; Profiling |
| Toolholder Material | Steel |
