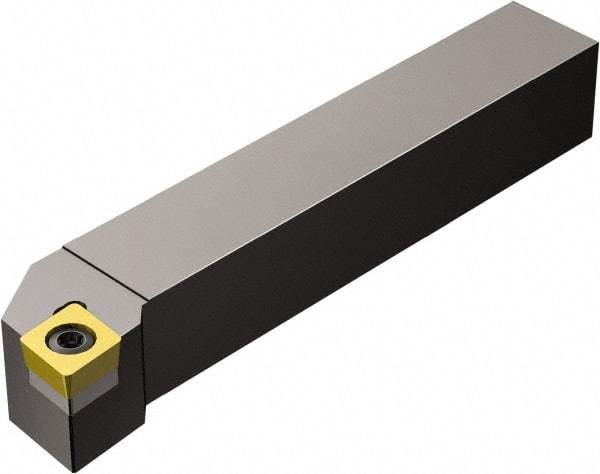

Sandvik Coromant - SCLC, Left Hand Cut, -5° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Neutral Rake Indexable Turning Toolholder - 6" OAL, CCMT 12 04 08 Insert Compatibility, Series CoroTurn 107
Item #: 36022556
Brand: Sandvik Coromant
Model #: 5749262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SCLC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | -5 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CCMT 12 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 1-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 0.8937 |
| Toolholder Material | Steel |
