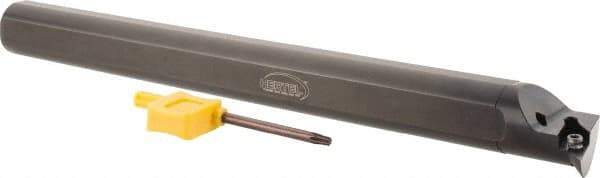

Hertel - 3/5" Min Bore Diam, 6" OAL, 3/8" Shank Diam, A06SDUCR2 Indexable Boring Bar - 1-1/8" Max Bore Depth, DC.. 21.51 Insert, Screw-On Holding Method
Item #: 36018141
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A06SDUCR2 |
| Series | A |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.2500 |
| Minimum Bore Diameter (mm) | 15.24 |
| Minimum Bore Diameter (Inch) | 0.6000 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 28.58 |
| Maximum Bore Depth (Inch) | 1-1/8 |
| Maximum Bore Depth (Decimal Inch) | 1.1250 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | DC.. 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Coolant Hole Thread Size (Inch) | 0.1250 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Toolholder Material | Steel |
