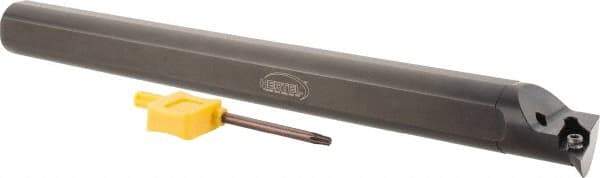

Hertel - 1.2" Min Bore Diam, 12" OAL, 1" Shank Diam, A16SCLPR3 Indexable Boring Bar - 3" Max Bore Depth, CP.. 32.52 Insert, Screw-On Holding Method
Item #: 36018042
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A16SCLPR3 |
| Series | A |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3750 |
| Minimum Bore Diameter (mm) | 30.48 |
| Minimum Bore Diameter (Inch) | 1.2000 |
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 76.20 |
| Maximum Bore Depth (Inch) | 3 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | CP.. 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6400 |
| Coolant Hole Thread Size (Inch) | 1/4-27 NPT |
| Toolholder Material | Steel |
