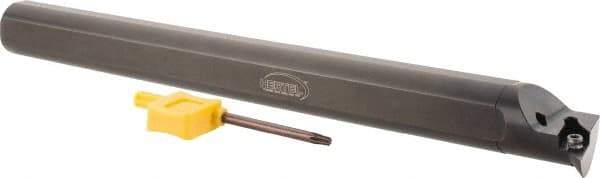

Hertel - 0.98" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A12SSDXPR3 Indexable Boring Bar - 2-1/4" Max Bore Depth, DP.. 32.52 Insert, Screw-On Holding Method
Item #: 36017994
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A12SSDXPR3 |
| Series | A |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3750 |
| Minimum Bore Diameter (mm) | 24.89 |
| Minimum Bore Diameter (Inch) | 0.9800 |
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 57.15 |
| Maximum Bore Depth (Inch) | 2-1/4 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | DP.. 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5620 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Toolholder Material | Steel |
