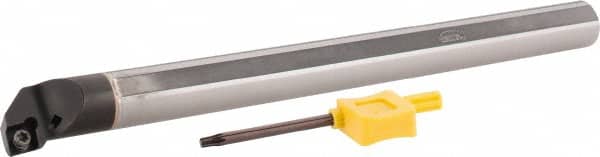

Hertel - 0.93" Min Bore Diam, 10" OAL, 3/4" Shank Diam, E12SWLPR3 Indexable Boring Bar - 4-1/2" Max Bore Depth, WP.. 32.53 Insert, Screw-On Holding Method
Item #: 36017663
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E12SWLPR3 |
| Series | E |
| Minimum Bore Diameter (mm) | 23.62 |
| Minimum Bore Diameter (Inch) | 0.9300 |
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 114.30 |
| Maximum Bore Depth (Inch) | 4-1/2 |
| Maximum Bore Depth (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | WP.. 32.53 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Hole Thread Size (Inch) | 0.2810 |
| Coolant Hole Diameter (Decimal Inch) | 0.2810 |
| Toolholder Material | Carbide |
