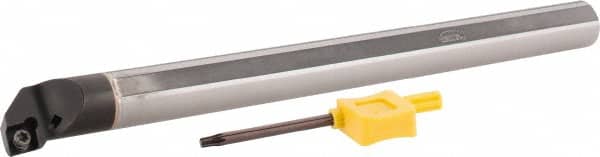

Hertel - 0.415" Min Bore Diam, 5" OAL, 5/16" Shank Diam, E05SCLPR18 Indexable Boring Bar - 1.878" Max Bore Depth, CP..1.81.51 Insert, Screw-On Holding Method
Item #: 36017655
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E05SCLPR18 |
| Series | E |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.2250 |
| Minimum Bore Diameter (mm) | 10.54 |
| Minimum Bore Diameter (Inch) | 0.4150 |
| Minimum Bore Diameter (Decimal Inch) | 0.4150 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 47.70 |
| Maximum Bore Depth (Inch) | 1.8780 |
| Maximum Bore Depth (Decimal Inch) | 1.8780 |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (mm) | 7.95 |
| Shank Diameter (Inch) | 0.3130 |
| Shank Diameter (Decimal Inch) | 0.3130 |
| Insert Compatibility | CP..1.81.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2190 |
| Coolant Hole Thread Size (Inch) | 0.093 |
| Coolant Hole Diameter (Decimal Inch) | 0.0930 |
| Toolholder Material | Carbide |
