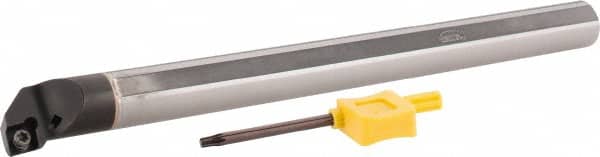

Hertel - 3/5" Min Bore Diam, 8" OAL, 1/2" Shank Diam, E08SCLPR2 Indexable Boring Bar - 3" Max Bore Depth, CP.. 21.51 Insert, Screw-On Holding Method
Item #: 36017598
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E08SCLPR2 |
| Series | E |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.2500 |
| Minimum Bore Diameter (mm) | 15.24 |
| Minimum Bore Diameter (Inch) | 0.6000 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 76.20 |
| Maximum Bore Depth (Inch) | 3 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 203.20 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | CP.. 21.51 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3120 |
| Coolant Hole Thread Size (Inch) | 0.187 |
| Coolant Hole Diameter (Decimal Inch) | 0.1870 |
| Toolholder Material | Carbide |
