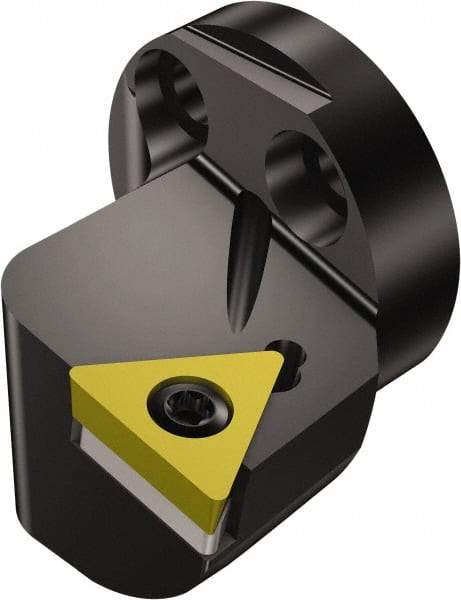

Sandvik Coromant - Right Hand Cut, Size 40, TCMT 16T308 Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 32mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 36008217
Brand: Sandvik Coromant
Model #: 5764429
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 32.00 |
| Head Length/Projection (Decimal Inch) | 1.2598 |
| Insert Style | TCMT 16T308 |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw; Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -8 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | TCMT 16T308 |
