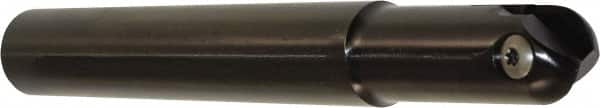

Millstar - 3/4" Cut Diam, 5" Max Depth of Cut, 3/4" Shank Diam, 6" OAL, Indexable Ball Nose End Mill - Straight Shank, SFCY Toolholder, MB, MBT, RBT Insert
Item #: 35889815
Brand: Millstar
Model #: SFCY075060750
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Inch) | 5 |
| Maximum Depth of Cut (Decimal Inch) | 5.0000 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | MB; MBT; RBT |
| Toolholder Style | SFCY |
| Series | SFCY |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Material | Tool Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Side Inserts Used on Toolholder | 0 |
| Neck Diameter (Decimal Inch) | 0.7500 |
