![Square End Mill: 1/4" Dia, 5/8" LOC, 3 Flute, Solid Carbide](http://benchmarktooling.com/cdn/shop/files/4865705-21_78b5575f-ddd7-4d3c-bc61-ecc89d9f6ff4_1024x1024.jpg?v=1738647969)

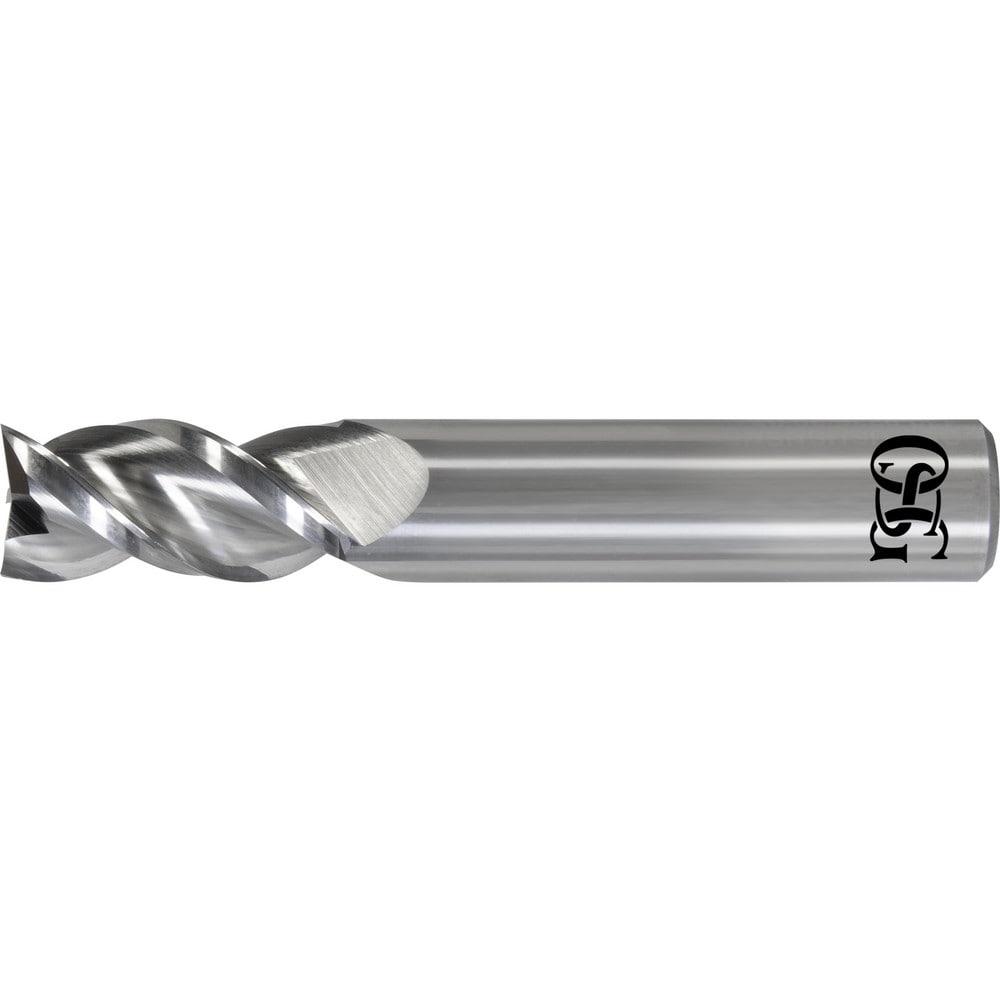

Square End Mill: 1/4" Dia, 5/8" LOC, 3 Flute, Solid Carbide
Item #: 48667513
Brand: OSG
Model #: VGM3-0009
Product Specifications
Mill Diameter (Decimal Inch) | 0.2500 |
Mill Diameter (Inch) | 1/4 |
Number Of Flutes | 3 |
End Mill Material | Solid Carbide |
Length of Cut (Inch) | 5/8 |
Shank Diameter (Inch) | 1/4 |
Overall Length (Inch) | 2-1/2 |
Single Or Double End | Single |
Coating/Finish Family | Bright/Uncoated |
Centercutting | Yes |
Cutting Direction | Right Hand |
Flute Direction | Right Hand |
Extended Reach | No |
Coolant Through | No |
Helix Angle | 40-43 |
Primary Workpiece Material | Aluminum & Non-Ferrous |
Primary Workpiece Material Code | N |
Coating/Finish | Bright/Uncoated |
Variable Helix | Yes |
Variable Index | Yes |
Chipbreaker | No |
Flute Type | Spiral |
Shank Type | Straight |
Material Grade | Solid Carbide |
Length Type | Regular |
Mill Diameter Tolerance | +0 / -0.0004 |
Shank Diameter Tolerance | h6 |
Series | VGM3-AL |
System Of Measurement | Fractional Inch |
UNSPSC Code | 27112803 |
